Hollow core sheets made of a modern primary material
Protective and cover sheets for transportation and storage

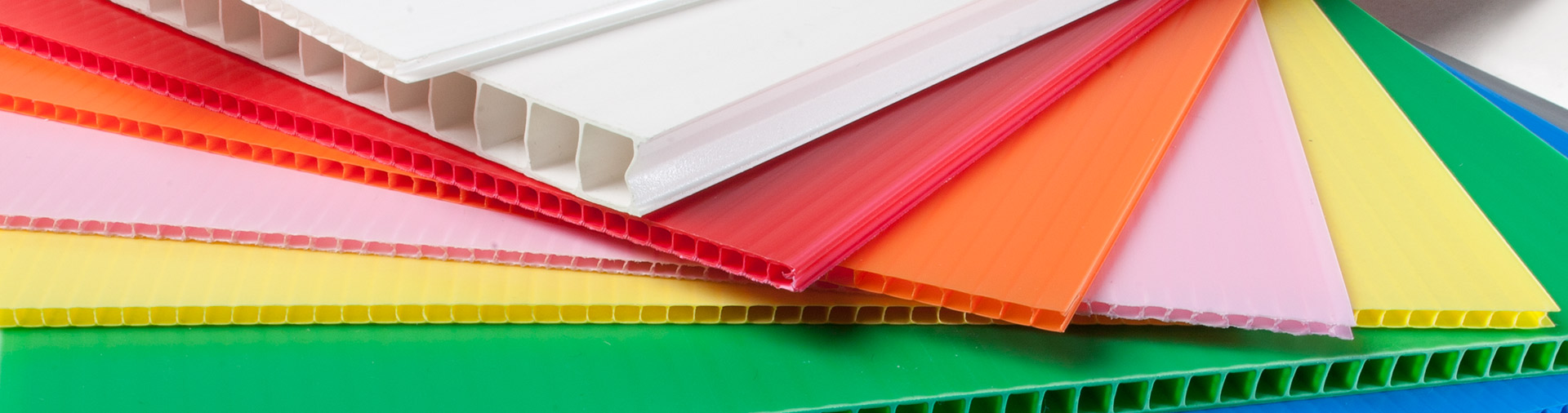

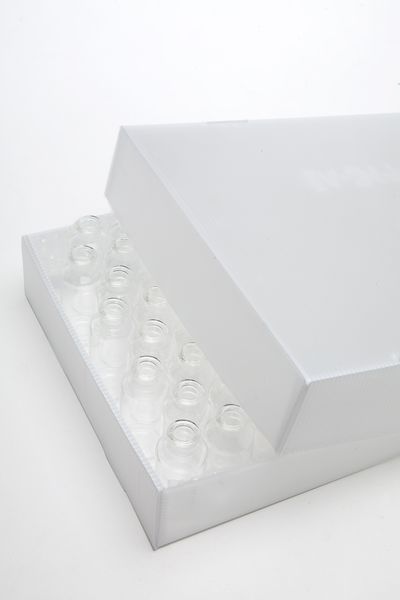

Polypropylene-based hollow core sheets (PP-HCS) serve as protective and cover sheets for the transportation and storage of glass containers and jars. They are used in sectors such as the automotive, retail, foodstuffs and pharmaceutical industries.
The honeycomb structure of the polypropylene in the hollow core sheets offers numerous advantages and can also be used as an additional material to apply its conductive, antistatic and biodegradable properties to the materials. Hollow core sheets have a low weight but are very resilient. They are resistant to moisture and easy to clean.
At a glance: the advantages
- lightweight
- resilient
- antistatic
- environmentally friendly
- recyclable
100% recyclable
Gallery

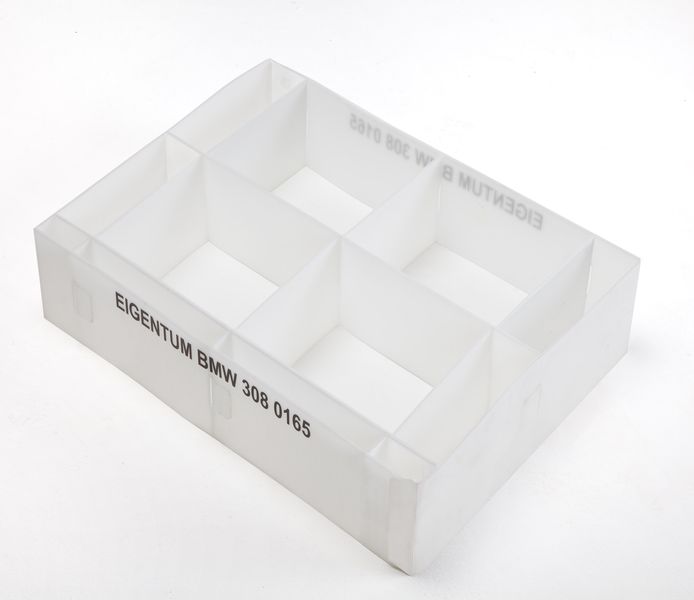

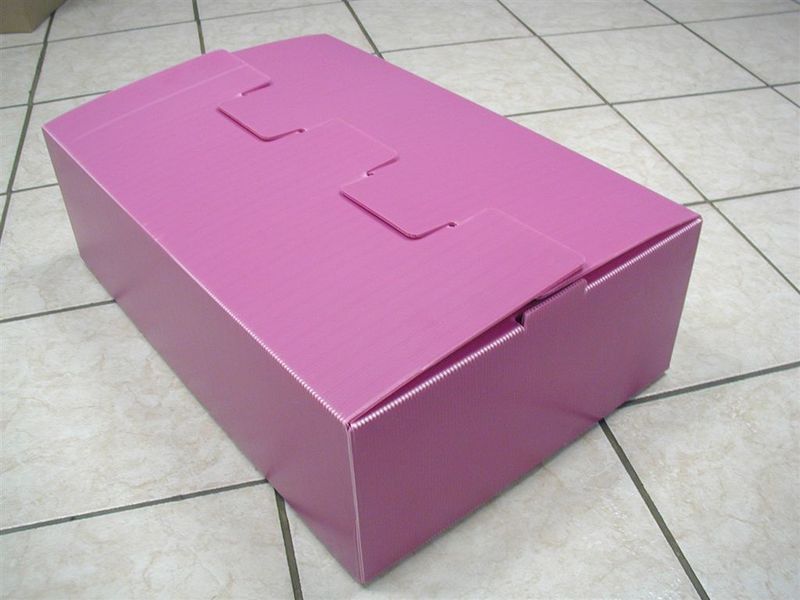

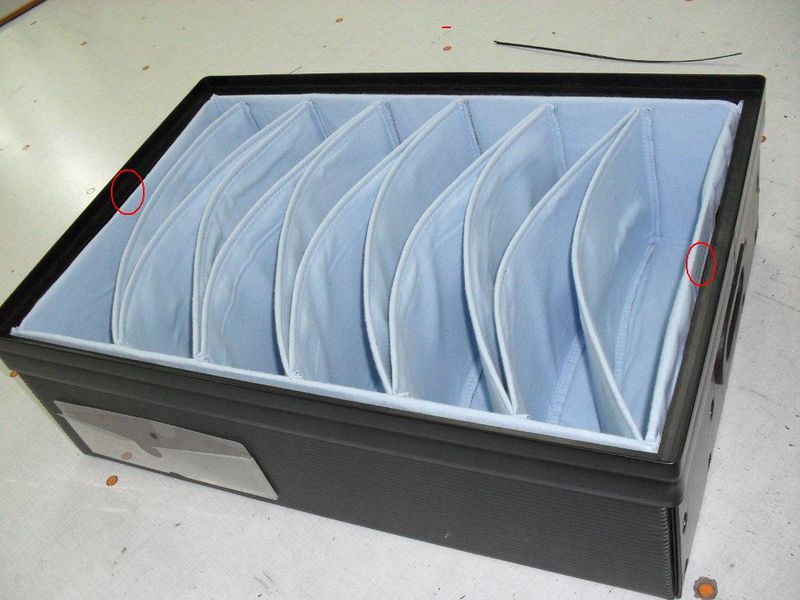

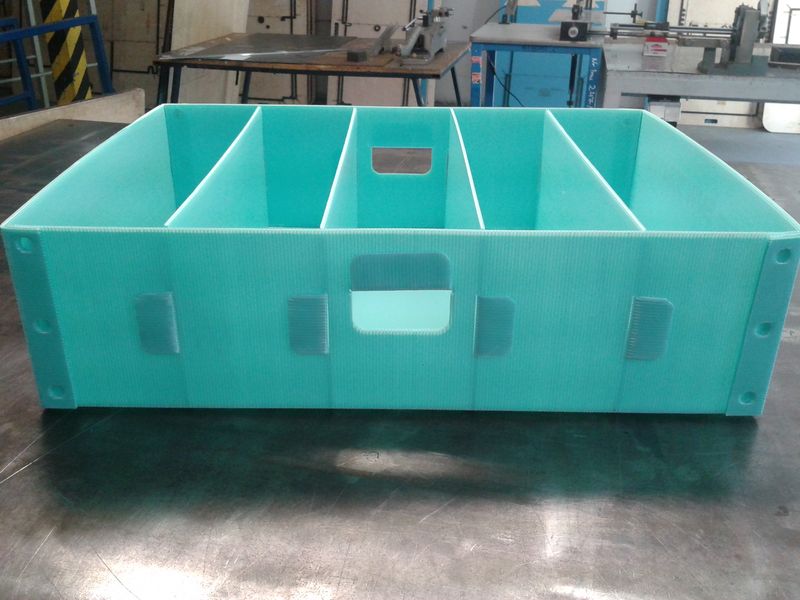

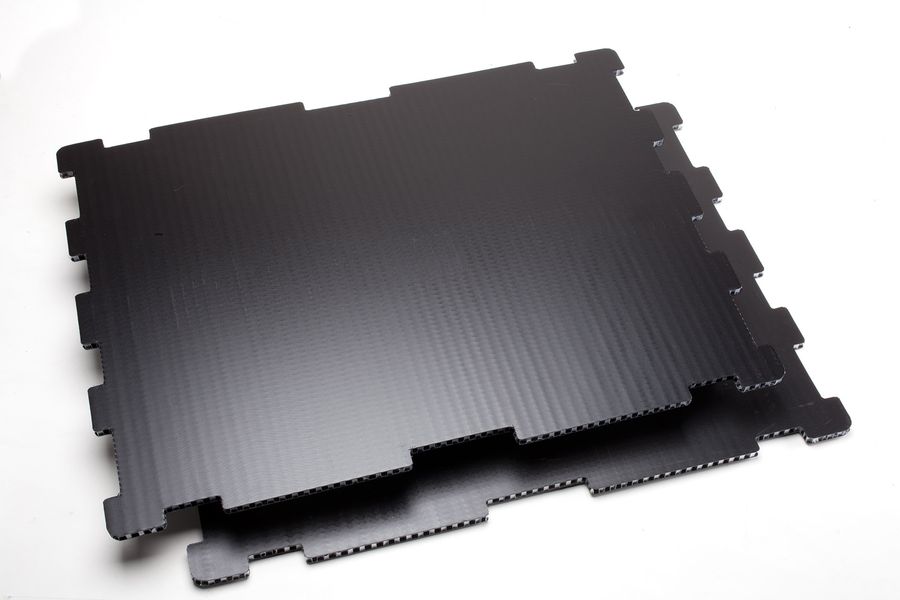

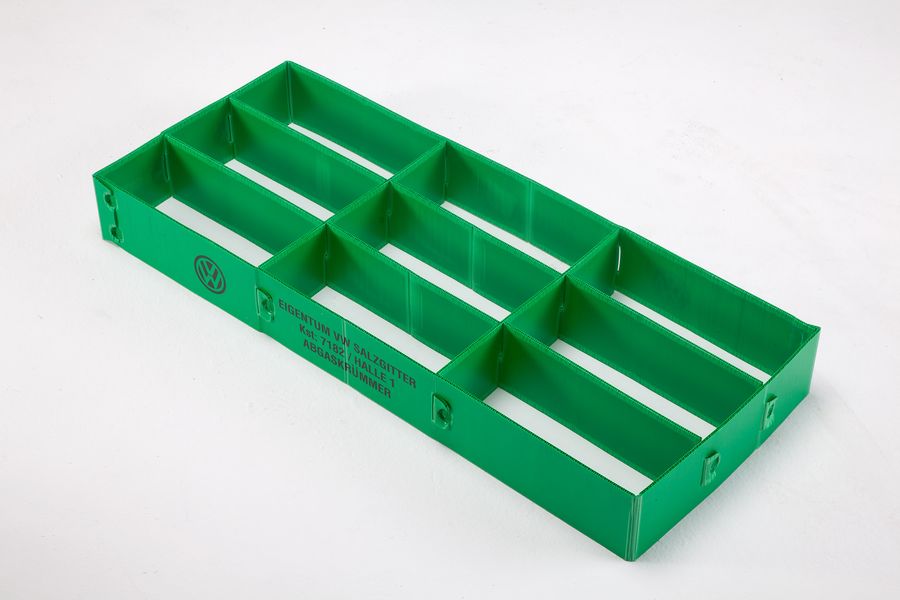

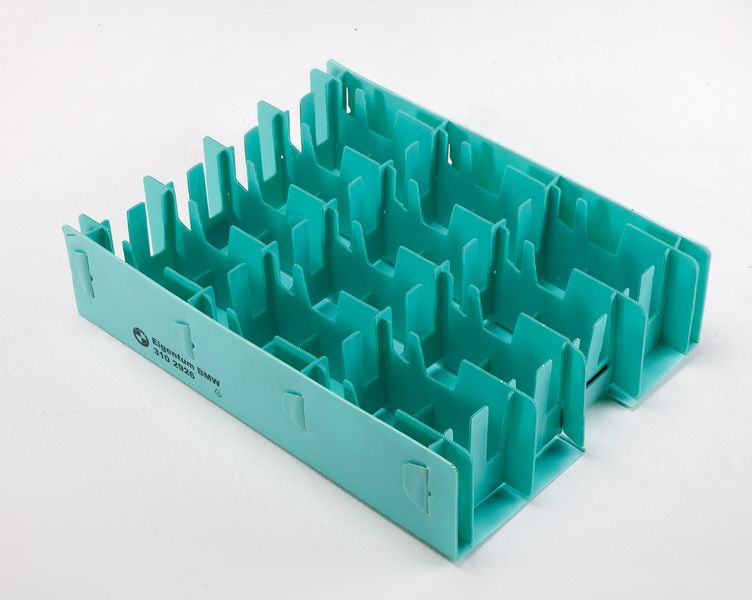

Examples of use
Take a look at our CPL® hollow core sheets, EXALITE®, EPLAK®, plastic pallets, and other plastic products for the storage and transportation of goods in a practical use environment. Gain inspiration for areas such as the pharmaceutical industry, the automotive industry, the food industry, and other sectors.
Technical data for CPL® | hollow core sheets
| Standard thickness | 2 mm | 2 mm | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm | 12 mm |
|---|---|---|---|---|---|---|---|---|---|
| Standard weight per m² | 250 g | 350 g | 500 g | 750 g | 1000 g | 1200 g | 1600 g | 2000 g | 2500 g |
| Length |
300 - 1000 mm ± 1 % 1001 - 2000 mm ± 1 % 2001 - 6000 mm ± 1 % |
|---|---|
| Width | 400 - 2400 mm ± 3 mm |
| Thickness |
2 - 6 mm ± 0,1 mm 6 - 12 mm ± 0,3 mm |
| Grammage tolerance | ± 5% |
| Corona treatment (optional) | 38 - 50 mN/m ± 4 mN/m (one side or both); treatment is effective for min. 6 months from the manufacture date, provided it is stored in the original packaging |
| UV stabilising (optional) | standard 2 years from purchase date in the case of direct exposure and outdoor conditions in the central European climate zone |
| pursuant to defined sample | |
| Bending | on a machine bending conveyor (Machine bending) |
+49 (0) 4484 / 29 99 70
Mon - Fri 8:00 AM - 4:30 PM
Other technical options
- antistatic treatment
- UV stabilising
- corona treatment
- conductivity with surface resistance 10⁴ - 10⁶ Ω
- Edge melting
- creating the sheets in rolls (rolled goods)
- transparent decorative sheets with increased visibility, lamination of sheets with non-woven material, foam, foil etc.
- Print (screen print and flexo print)
